Dining room TV's Atmosphere TV

TABLE OF CONTENTS

• Dining room TV's show static or no signal.
• Dining room TV's show distorted or very low quality picture.
• Dining room TV's show colored bars instead of a picture.
• Dining Room TV's are in Black and White.
• How is everything plugged in?
• Can we play/stream other shows outside of Atmosphere TV?

Dining room TV's show static or no signal.

All TV's should be on channel 3. The input select should be TV or Antenna depending on your TV's brand.

Ensure that all cables are plugged in and the white box has a green and red light and the black Atmosphere TV box has a blue light.  Jump to: "How is everything plugged in?" to ensure your cables are plugged in correctly.

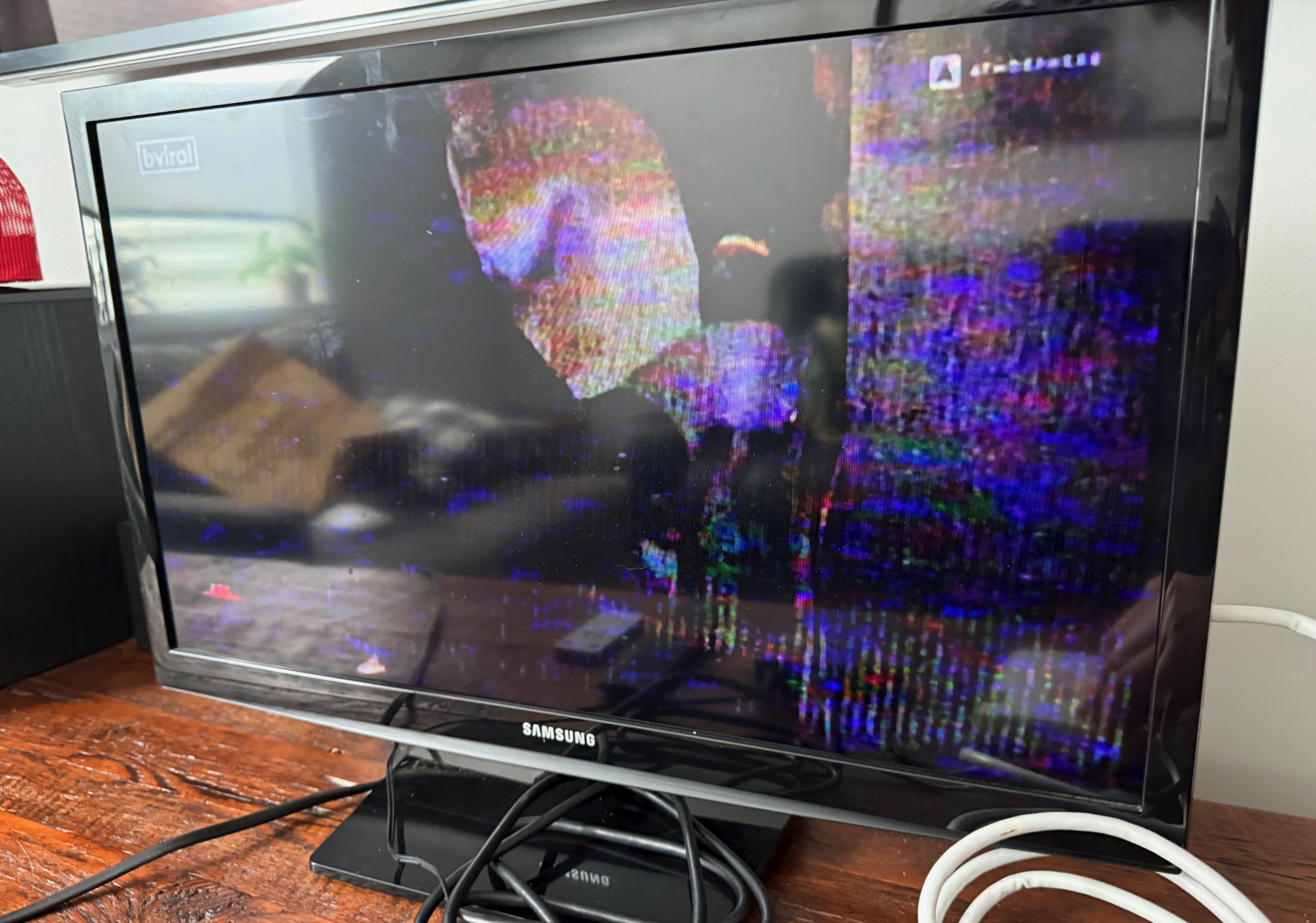

Dining room TV's show distorted or very low quality picture.

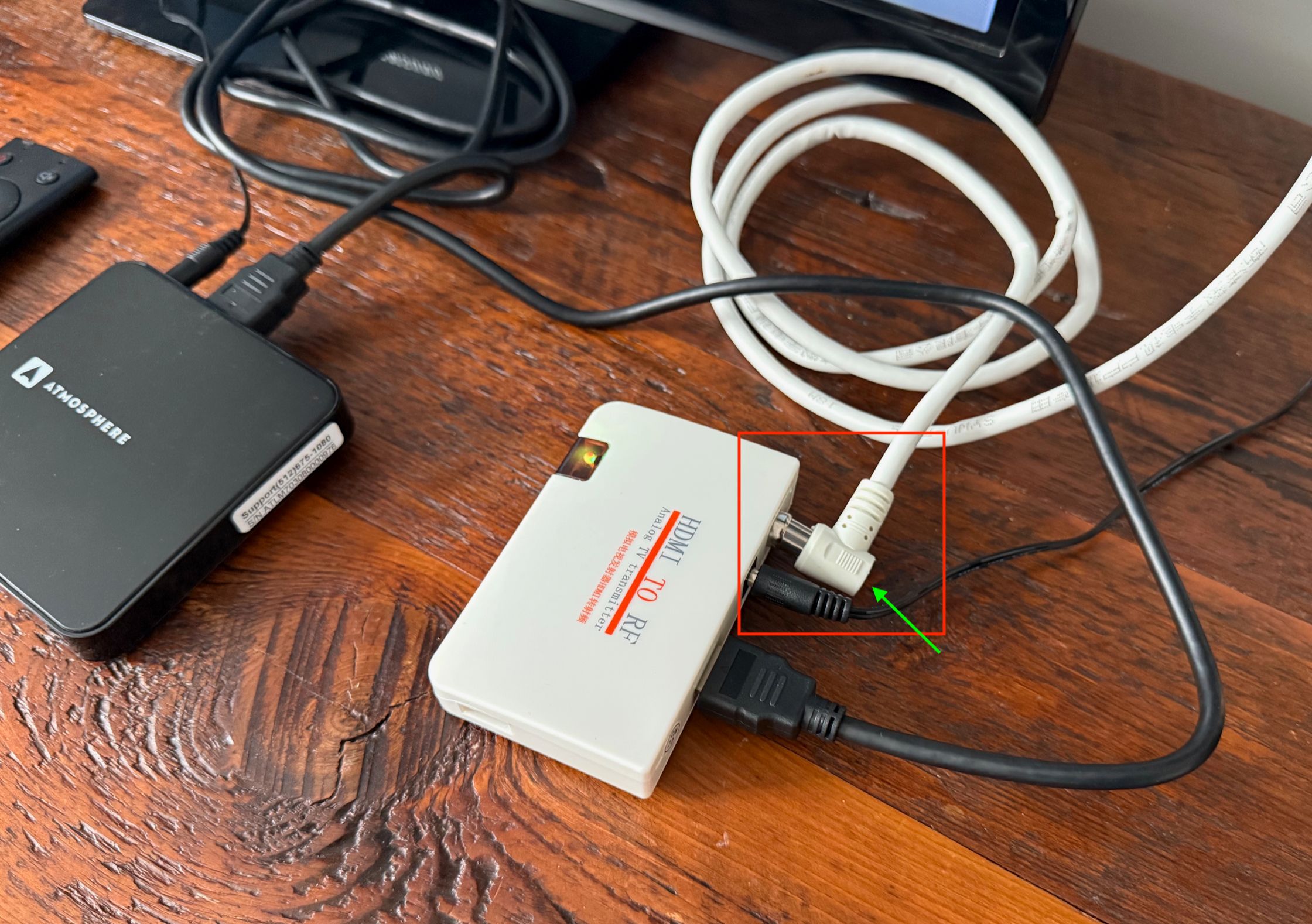

If you have a poor signal or the picture quality is very bad this is usually an issue with cabling. Check all connections on the back of the TV's. Also go to the white box and check the white coax cable to ensure it is plugged in tightly on both ends. The white coax cable plugs into a large splitter, make sure all wires are tight. Also, unplug the power from the white box for 15 seconds and plug it back in.

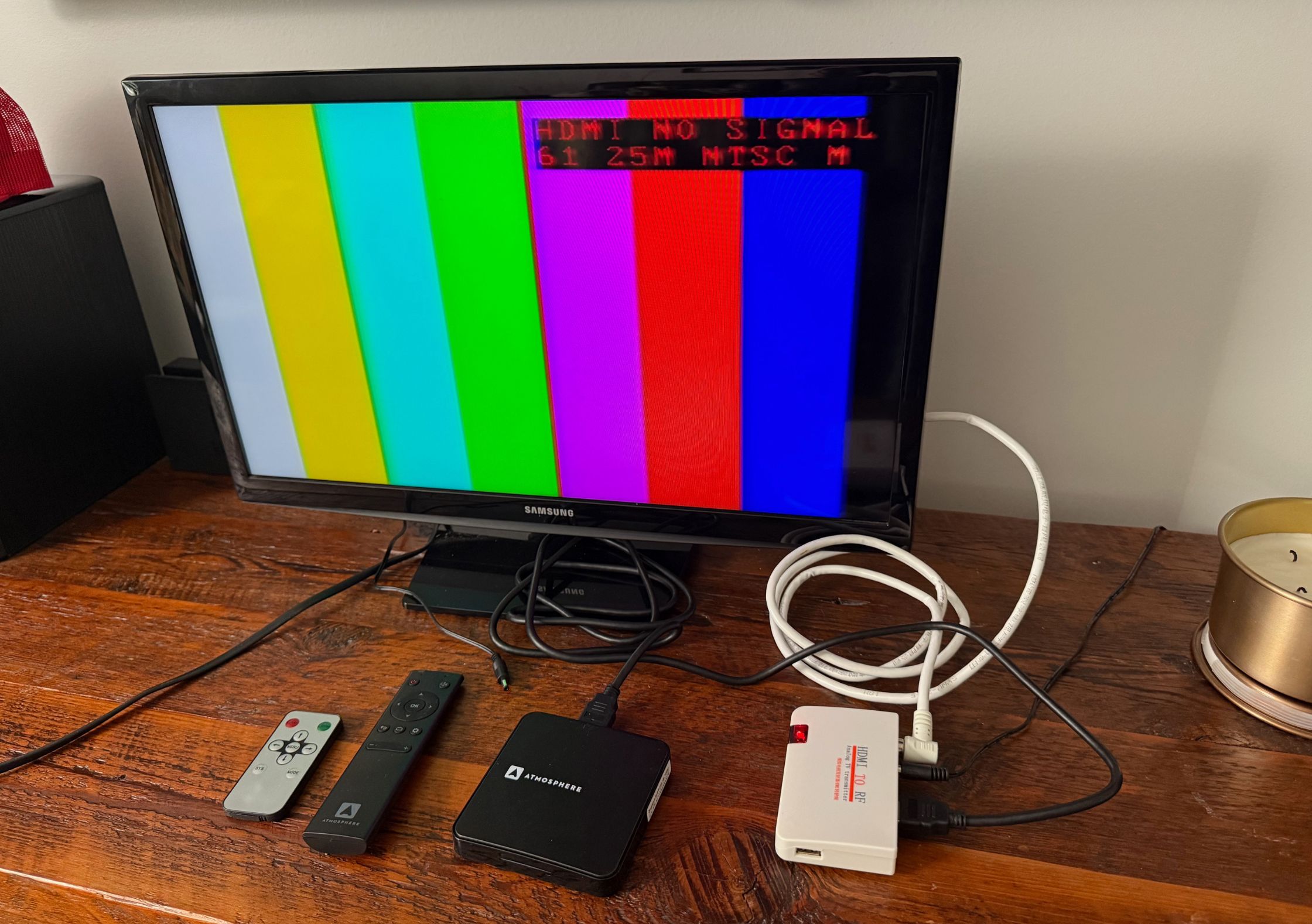

Dining room TV's show colored bars instead of a picture.

If colored bars are showing on your TVs it could mean that the black atmosphere box or Apple TV box (depending on your device) is off. Try to unplug the power from Apple TV or Atmosphere TV, wait 15 seconds and plug it back in. Make sure the HDMI cable from the box is connected tightly into the white box.

If your Apple TV remote won't turn on the box or let you control the device, you need to charge it for 1 hour and then restart the Apple TV box to repair the remote.

Dining Room TV's are in Black and White.

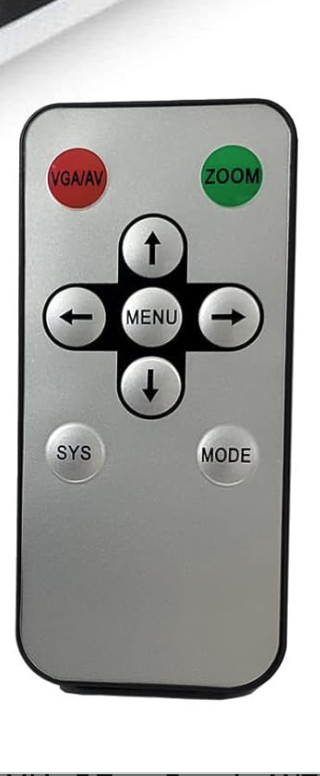

When your TV picture is in black and white it usually means the white converter box mode was switched off of NTSC. Locate the remote shown in the photo. Point the remote at the white converter box and press the SYS button until NTSC appears on the upper right corner of the screen.

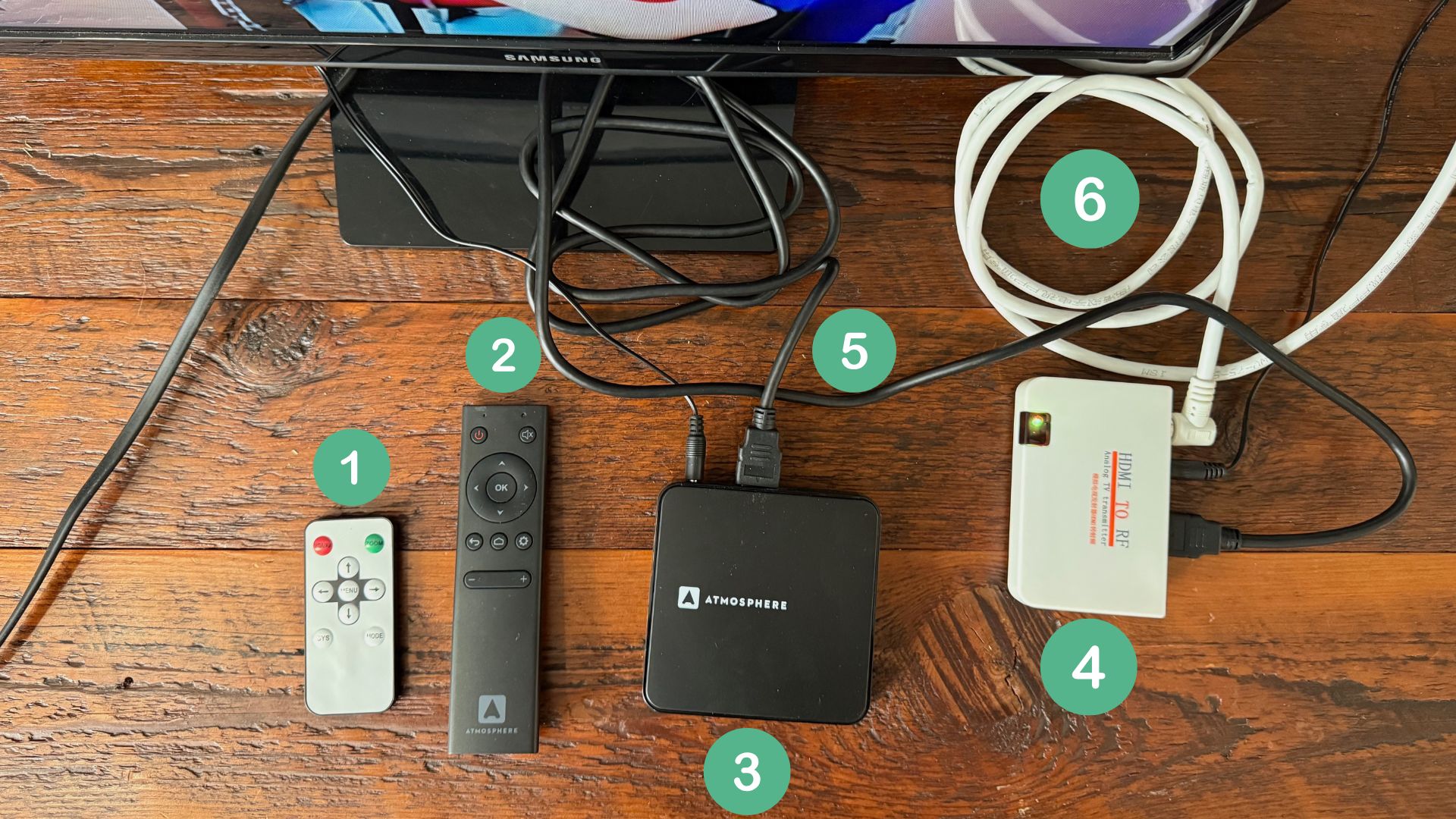

How is everything plugged in?

1. Remote used to make image adjustments. Controls the HDMI to RF box (White converter box).
2. Atmosphere TV remote. Some locations have an Apple TV remote instead.
3. Atmosphere TV box. Some locations have an Apple TV used instead.
4. HDMI to RF White Converter box. Used to plug the Atmosphere TV HDMI cable in and the white coax cable goes out into the coax splitter.
5. HDMI cable
6. White Coax cable. Plugs into an RF splitter with multiple coax cables.

Can we play/stream other shows outside of Atmosphere TV?

Atmosphere TV provides free content that meets commercial streaming requirements. Streaming platforms like, YouTube TV, Amazon, Hulu, Netflix, Disney+ and other streaming apps violate commercial licensing. Fines for these violations can be unto $100,000. You should never hook any streaming device up to the TV.
